COM-JDCPF JD Compact Pallet Fork Frame AGT-SAII100-2

COM-JDCPF JD Compact Pallet Fork Frame AGT-SAII100-2

Short Description:

1.Fork Length 48″

2.Overall Length 58″

3.Width 5.9″

4.Height 39″

5.Hitch SS; JD; EG


Product Detail

Product Tags

Features:

1. Universal Skid Steer Style Hookup.

2. Safely move hay bales with the added stability of a headache rack.

3. Removable pallet fork blades and spears: For your convenience, the hay spear is detachable, allowing you to add Class II pallet fork blades to the bracket rods already installed in the hay frame. You can choose to use a spear, a fork, or both according to your situation.

4. Easily transport hay bales and pallets: With the design of this frame attachment, you can use hay spears to quickly move large round hay bales, or you can add pallet forks to move standard pallets, logs, and other debris.

5. Durable structure: The frame is a heavy-duty powder-coated structural steel and welded headache frame. Providing steel with anti-rust capabilities to protect it from the effects of weather.

Product Description:

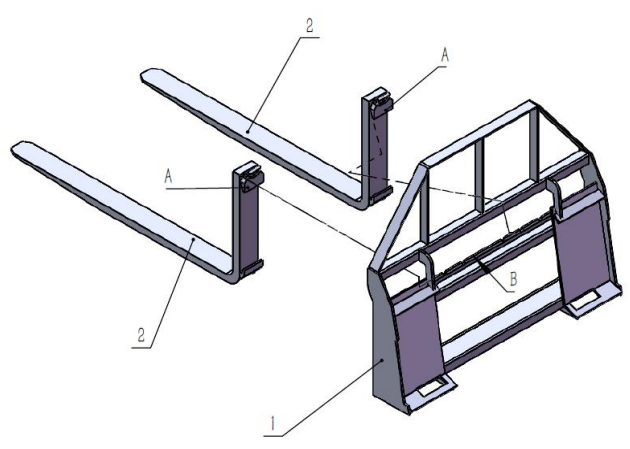

Product assembly drawing a picture:

COM-JDCPF JD Compact Pallet Fork FrameAGT-SAII100-2

Assembly Instructions:
1. Unlock A on P2.
2. Load P2 in the middle and move to both sides respectively on P1, then lock A.
Product parts list:
COM-JDCPF JD Compact Pallet Fork FrameAGT-SAII100-2

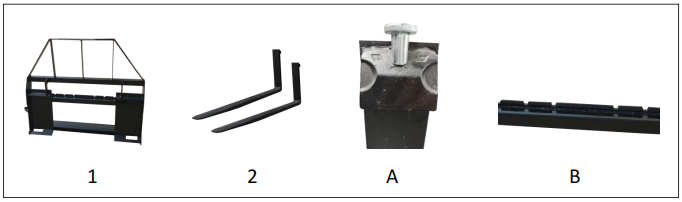

Product parts pictures:
COM-JDCPF JD Compact Pallet Fork FrameAGT-SAII100-2
