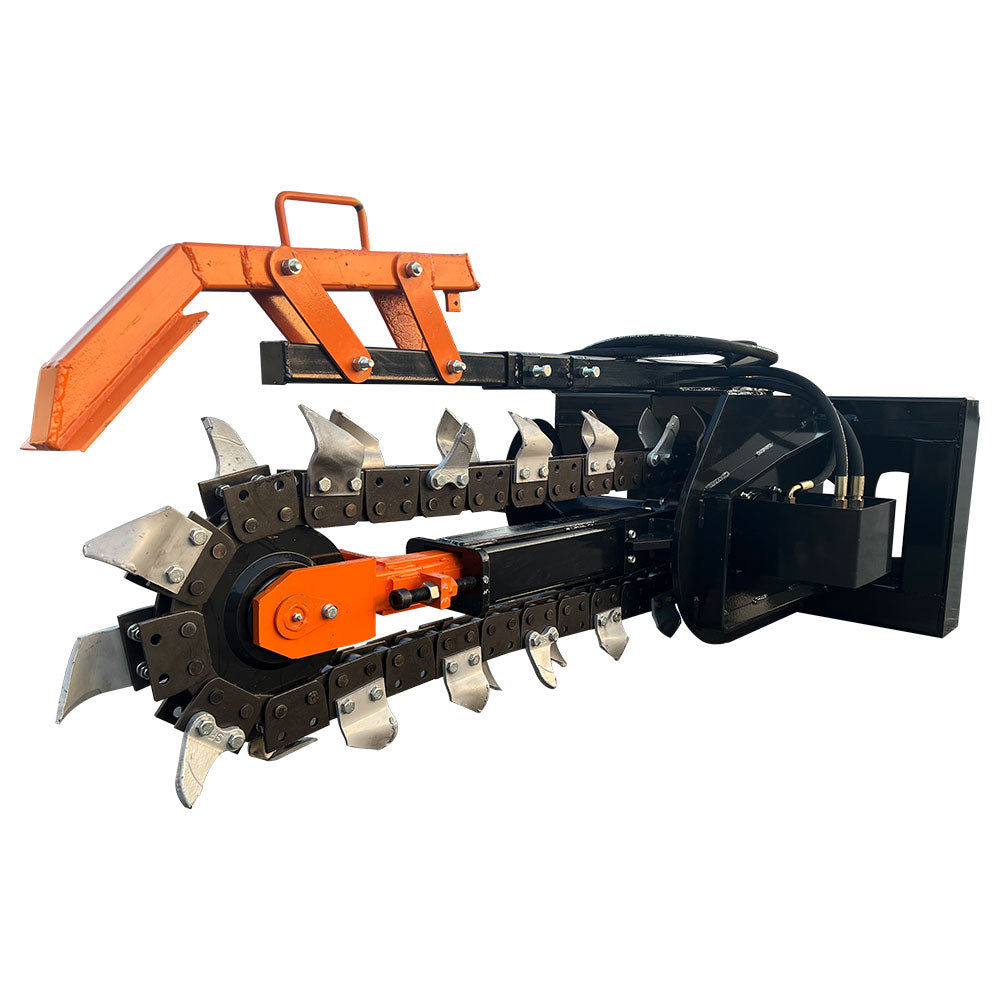

Skid Steer Trencher Attachment | AGT-ECSSCT72
Skid Steer Trencher Attachment | AGT-ECSSCT72
Technical Details
|
Model |
ECSSCT72 |
|
Flow (L/min) |
45-75 |
|
Digging Depths |
47.24" |
|
Trench Widths |
5.11" |
|
Working Pressure (MPa) |
15 |
|
Measurement |
78'' × 51'' × 23'' |
|
Weight |
892.87 lbs |
Features
1. Manual or hydraulic side-shift to get up close to buildings.
2. Single Standard chains recommended for loose, damp soil.
3. Double Standard chains recommended for harder, drier soil, roughly twice the number of teeth.
4. Half Rock & Frost chains recommended for harder, frozen and rocky digging conditions.
5. Comes complete with trench cleaner arm, hoses and flat face.
Product Description
1.Designed for high-flow hydraulic systems.
2.Trencher is available in 36"-60" (914-1524 mm) digging depths
3.6"-12" (152-305 mm) trench widths.
Details

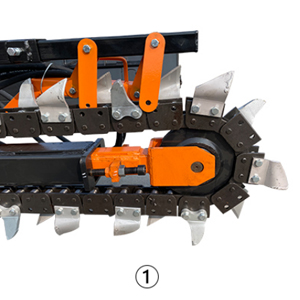

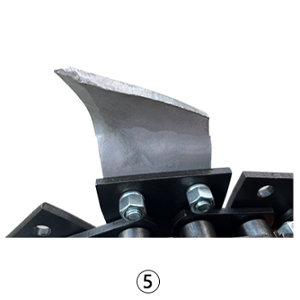

1. Adjustable trenching depth up to 36"-60" * Teeth material - Shark teeth: Alloy carbide steel * Cup teeth: Wear-resistant edge (alloy carbide).
A combination of 30/70 percent teeth configuration. Adjustable chain tension.Shark teeth: Rocky and gravel trenching * Cup teeth: General soil work trenching.

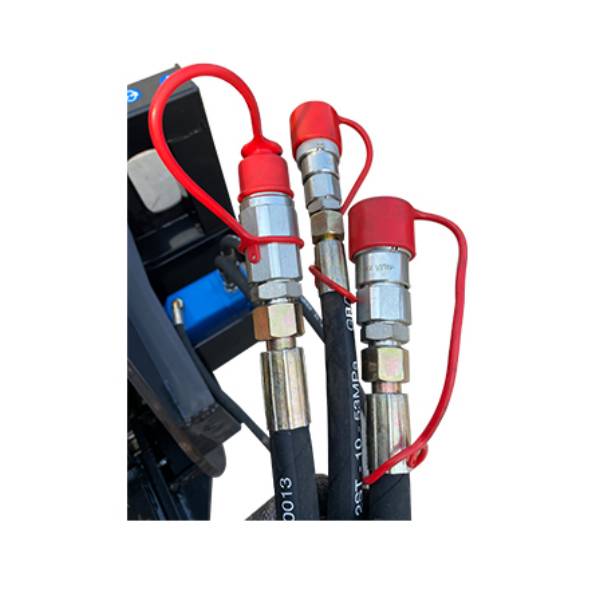

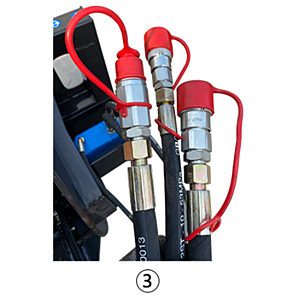

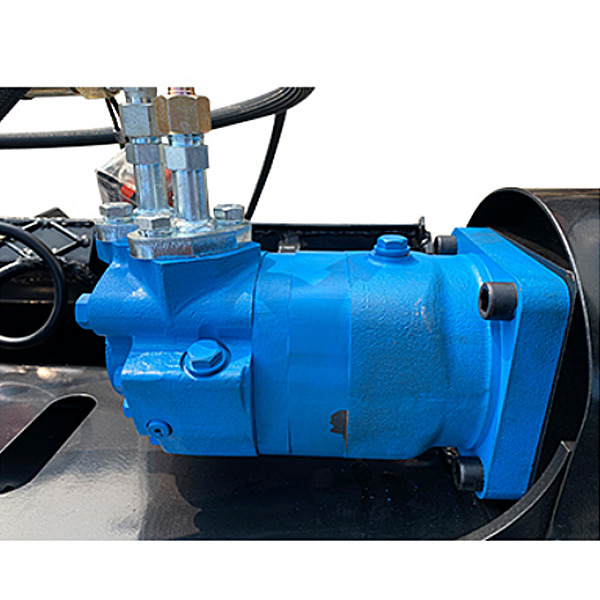

2. Three hydraulic hoses * ½" hydraulic hoses (In and Out) * Case drain line (3rd hose) provided for releasing motor pressure * Flat-faced couplers included.

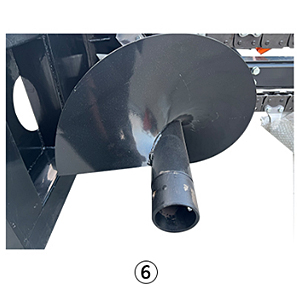

3. Large scraper shoes with built-in springs maintain loose soil that is clawed back to the chain to discharge and keep the trenched area clean.
